Permobil Acta-Embrace Back Cushion

$349.00$449.00

Clear

Cover Options

Mounting Hardware

Color Options

Embroidery

Embroidery - Font

Privacy Flap

Private Branding

Subtotal:

Add-ons total:

Total:

SKU: AE-BS10W10L
Share to a friend:

Description

HCPCS Coding: E2613/E2614 or E2617

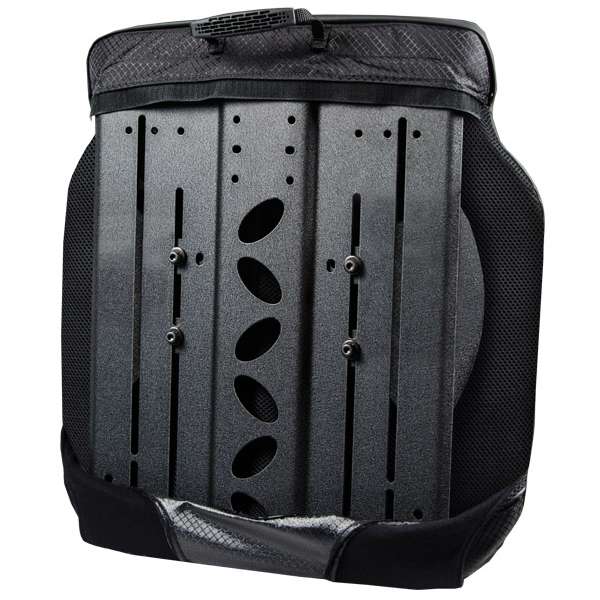

  • Integrated trunk supports are attached to a planar aluminum backrest shell and may be adjusted for angle, height, and up to a total of 3″ of width to create a custom supportive shape.
  • Aluminum stays on the backside of the two layer foam pad can be molded to support lumbar, scoliosis, and kyphosis needs.
  • Aluminum stays are offset from center of cushion, removing pressure points from the spine.
  • 9″ of total depth adjustment: 5″ in front of canes and 4″ behind the canes.
  • Lightweight durable aluminum shell comes with head support holes.
  • Provides pelvic and scapular relief.
  • Compatible with lateral hardware. A total of 11″ of pad width adjustment (5.5″ per side) and over 5″ of height adjustment.
  • Compatible with head support: 2″ wide x 1″ tall hole pattern.
  • Integrated chest harness strap guides or pre-drilled holes for optional extension strap guides.

Mobility Management Best Picks award winner 2016

FEATURES

  • Integrated trunk wings attach to a planar aluminum back support shell are adjustable for angle, height, and up to a total of 3” of width for standard wings and 1.5” for pediatric wings to create a custom supportive shape.
  • Moldable stays included for positioning, support, pressure redistribution and on-the-spot customization for a variety of spinal curvatures and changes in conditions.
  • Moldable stays on the backside of the two layer foam pad can be molded to support lumbar, scoliosis and kyphosis needs.
  • Moldable stays are offset from center of the back, removing pressure points from the spine.
  • Comes with integrated chest harness strap guides.
  • Durable aluminum shell comes with pre-drilled 2” x 1” head support hole pattern (BodiLink™ Head Support).

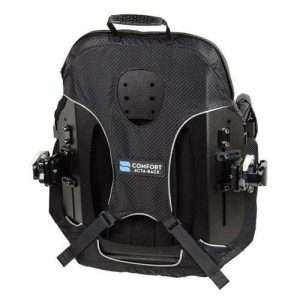

  • Compatible with lateral trunk support hardware. A total of 11” of pad width adjustment (5.5” per side) & over 5” of height adjustment. Lateral trunk supports (E0956) are optional & available.

STRETCH-AIR FABRIC

Designed for air transmission and heat reduction. This breathable laminate combines a high-stretch polyester top layer with a breathable vapor barrier.

COMFORT-TEK FABRIC

The fluid resistant exterior has supple leathery properties that provide an easily cleaned surface and protection for the inner cushion. Comfort-Tek has multi-dimensional stretch and helps alleviate pressure on bony prominences.

COLORED FABRIC PIPING

The Comfort-Tek and Stretch-Air covers are available with one of six accent colors: Blue, Green, Silver, Red, Purple, or Pink. Accent colors can be applied to the cushion via colored piping. If no colors are selected, our standard silver reflective piping is used. Additional fee applies.

Back Cushion Colored Piping

COMPASS 4 HARDWARE

  • Fully adjustable for height, depth, and angle of recline.
  • Requires only 1.5″ of space on each cane for mounting purposes.
  • All adjustments can be made while the user is seated in the wheelchair, eliminating the need for multiple transfers during the fitting process.
  • Quick-release feature allows backrest to be removed vertically within seconds.
  • Hardware may be installed within minutes and fits 3/4″, 7/8″, and 1″ tubing.
  • Positive locking feature for angle rotation.

4 POINT

  • 1. Cane mount fits 5 different cane diameters. Shorter strap that comes standard fits 3/4”, 7/8” & 1” while longer strap provided (not pictured) fits 1 1/8” & 1 1/4”.
  • 2. Slot lock nut system prevents unwanted rotation.
  • 3. Single design allows for easy adjustment with minimal fasteners.
  • 4. Single slot design uses very little space, allowing other hardware to mount.
  • 5. Minimal fasteners, but strong design.
  • 6. Track systems prevent rotation, allowing features to nest together for additional stability.
  • 7. Combination of aluminum and steel for ultralight hardware

Easy Installation
8″ height adjustability while user is in chair
Integrates every Acta-Series back support with the following power provider:
  • Quantum with TRU-Balance 3 Power Seating System (PMB-QUANTUM)
  • Permobil with Corpus 3G Power Seating System (PMB-PERMOBIL)
  • Quickie with 3.7 Power Seating System (PMB-QUICKIE)
  • Rovi with Motion Concepts Power Seating System (PMB-ROVI)

PRODUCT SPECIFICATION

Acta-Embrace Back Dimensions
