Merits Vision Ultra Power Wheelchairs


Out of stock

SKU: P325
Share to a friend:

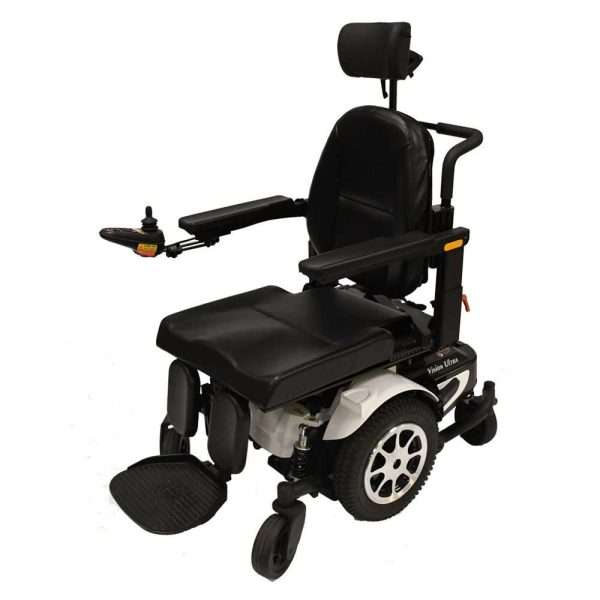

Merits Vision Ultra Power Wheelchairs

The Merits Vision Ultra Power Wheelchairs are advanced and feature-rich mobility devices designed to provide users with an exceptional level of comfort, performance, and mobility. With an emphasis on cutting-edge features and user-centric design, the Vision Ultra Power Wheelchairs offer users the opportunity to navigate their environment with ease and independence.

The Vision Ultra Power Wheelchairs offer adjustable and customizable seating options, including adjustable seat height, depth, and backrest angle. This ensures a personalized and comfortable fit for users. Many models are equipped with power tilt and recline functionalities, allowing users to adjust their seating and backrest angles. This feature promotes better posture, pressure relief, and overall comfort.

Merits Vision Ultra Power Wheelchairs


Medicare Code
K0822/K0823 Single Power K0835

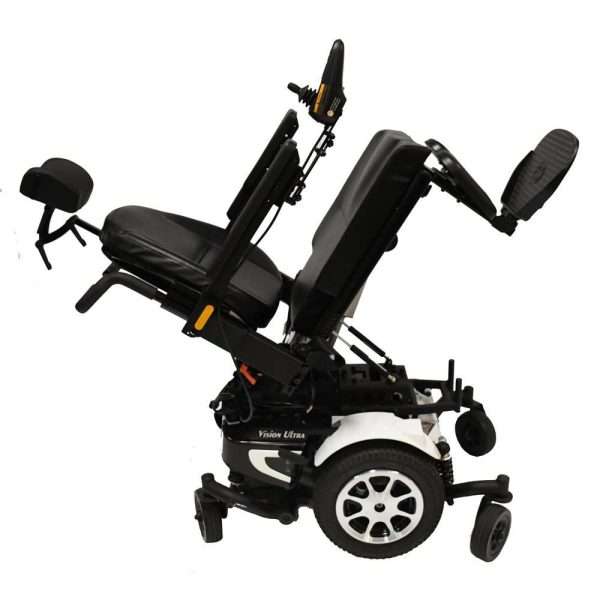

  • Power tilt operated in 0°-55°
  •  Height-adjustable cantilever armrests
  •  Seat width and depth adjustable 16″-22″ n 1″ increments

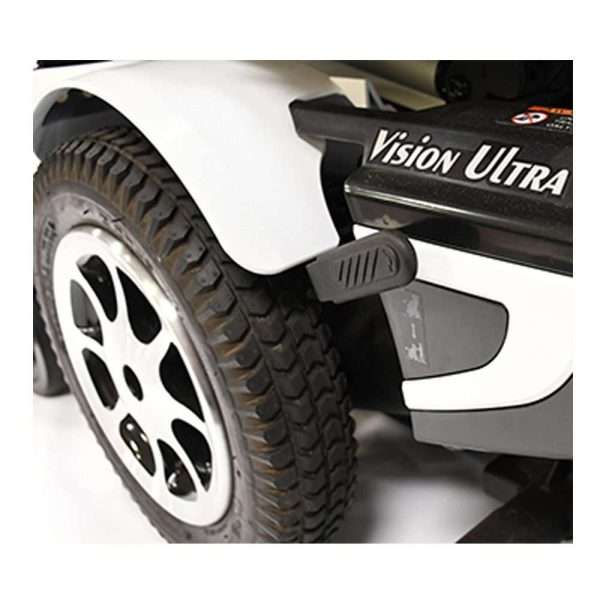

  •  Large 14″ drive wheels
  •  Tension-adjustable front and rear suspension
  •  Optional Seating: Captain Seat, Solid Seat Pan or Tilt Only Seating
  •  Optional battery upgrade: 22NF
  •  Articulating Power Footplate
  •  Backrest height 21″-23″ with tilt only seat, 20″ on Captain and Pan seats

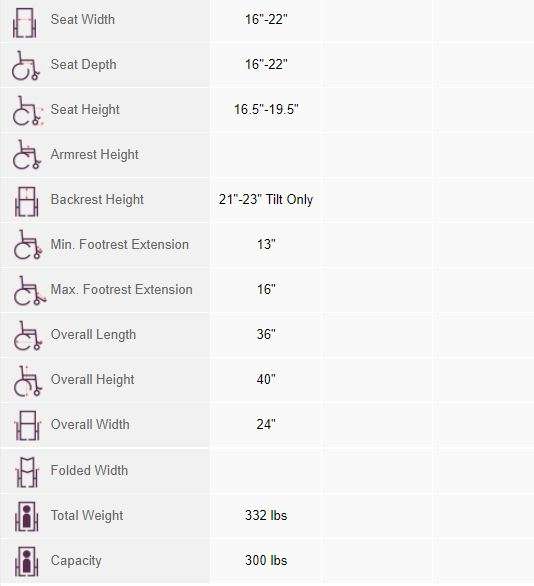

cis ult dims



Max Speed 5 mph
Range 12 miles (19 w/ 22NF)
Turning Radius 25.6″
Ground Clearance 2.4″
Motor DC24V, 240W

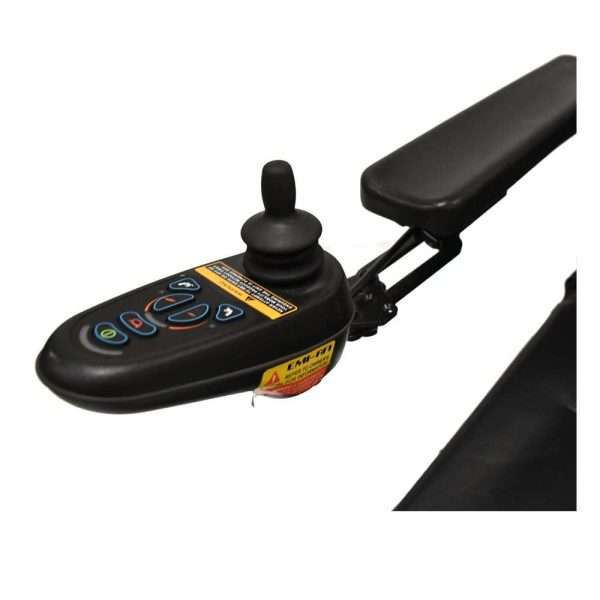

Controller VR2
Battery 34Ah/U1 or 22NF
Charger 6A off board
Casters 6″ x 2″
Drive Wheels 14″ x 3″
Brakes Intelligent, regenerative, electromagnetive
