Merits Pilot Aviator Straight Stairlift


Add Ons


Add-ons total:



SKU: E603
Share to a friend:

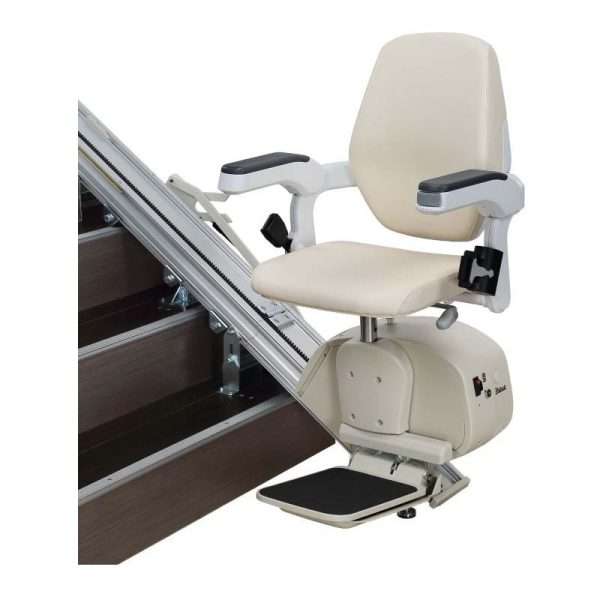

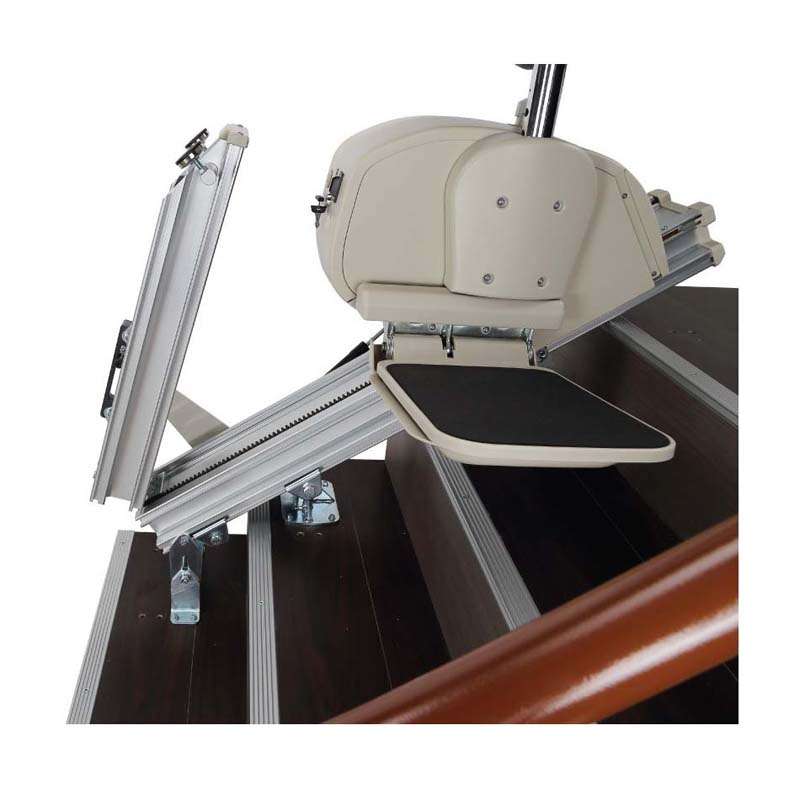

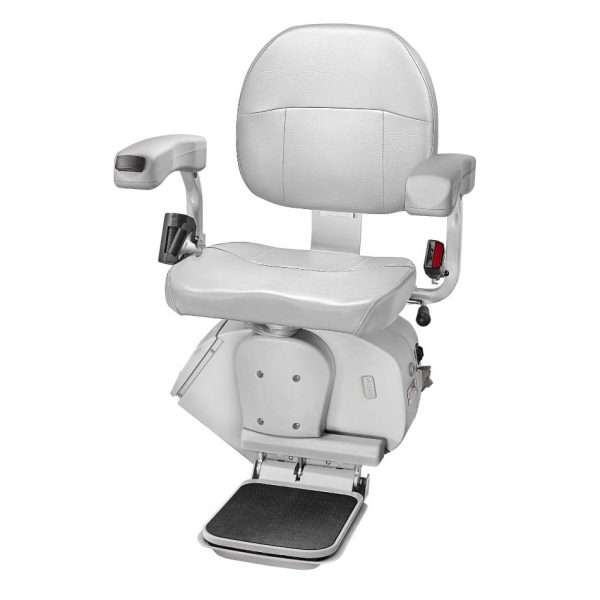

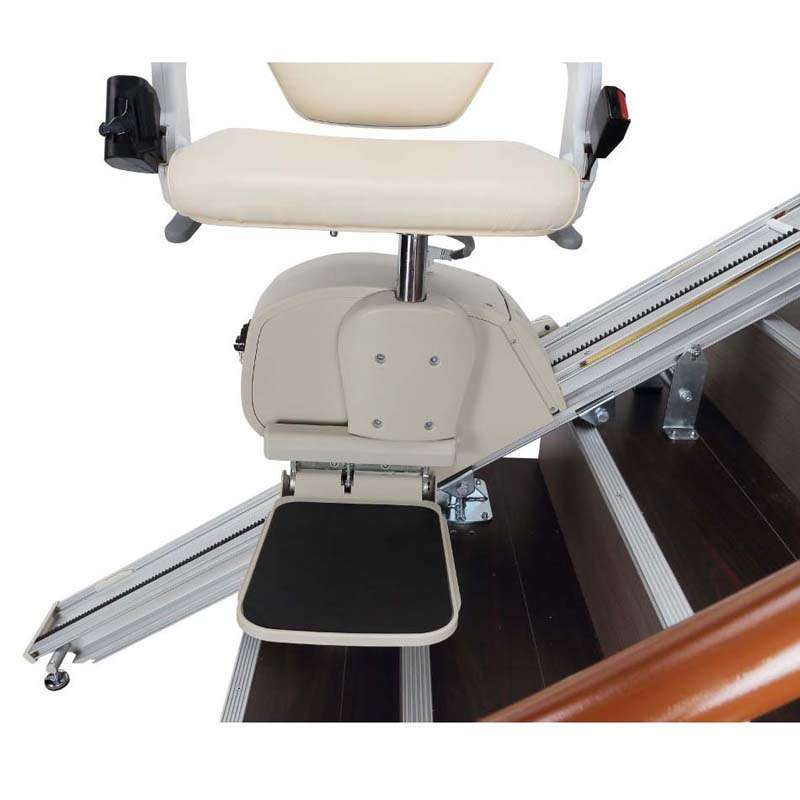

Merits Aviator Straight Stairlift


  • Remote Control: Easy and convenient to call and park carriage.
  • Swivel Seat with Locking Catch: Ensures easy entry and exit from the carriage: Unit is non-operational unless the seat has been turned to the ready position.
  • Folding Seat & Footrest Fold-away design allows others to use the staircase freely when the unit is folded.
  • Infrared Remote Controls: Easy and convenient to control the chair either up or down when needed.
  • Adjustable seat height: 40.6~50.8cm.
  • Adjustable armrest width: 40.6~50.8cm.


  • Soft Start and Soft Stop Technology: Comfortable and no lurch as the lift starts or stops.
  • Obstacle Sensor Safety Interlock: Prevents unit from colliding with any obstruction on the stairway.
  • Mechanical Braking Systems: Self-locking worm gear eleminates the possibility of any uncontrolled movement.
  • Compliant with ASME A18.1A/ BS/ EN 81-40:2008


E603 d E603 d2 E603 d3


Weight Capacity 158 kg / 350lb
Speed 6 m / min. (20 fpm)
Incline Limits Max 55°
Travel per Charge 650 Steps
Drive Method Rack & Pinion
Motor 1/2 HP, 24 VDC
Charger Input: 100~240 VAC, 50~60 HZ Output: 2A / 24 VDC
Battery 24V/9AH x 2pcs
Brake Overspeed Governor (optional)
Carriage Weight 53 kg / 116.5 lb
STD Seat Dimension (WxDxH) 40 x 40 x 40 cm / 16″ x 16″ x 16″

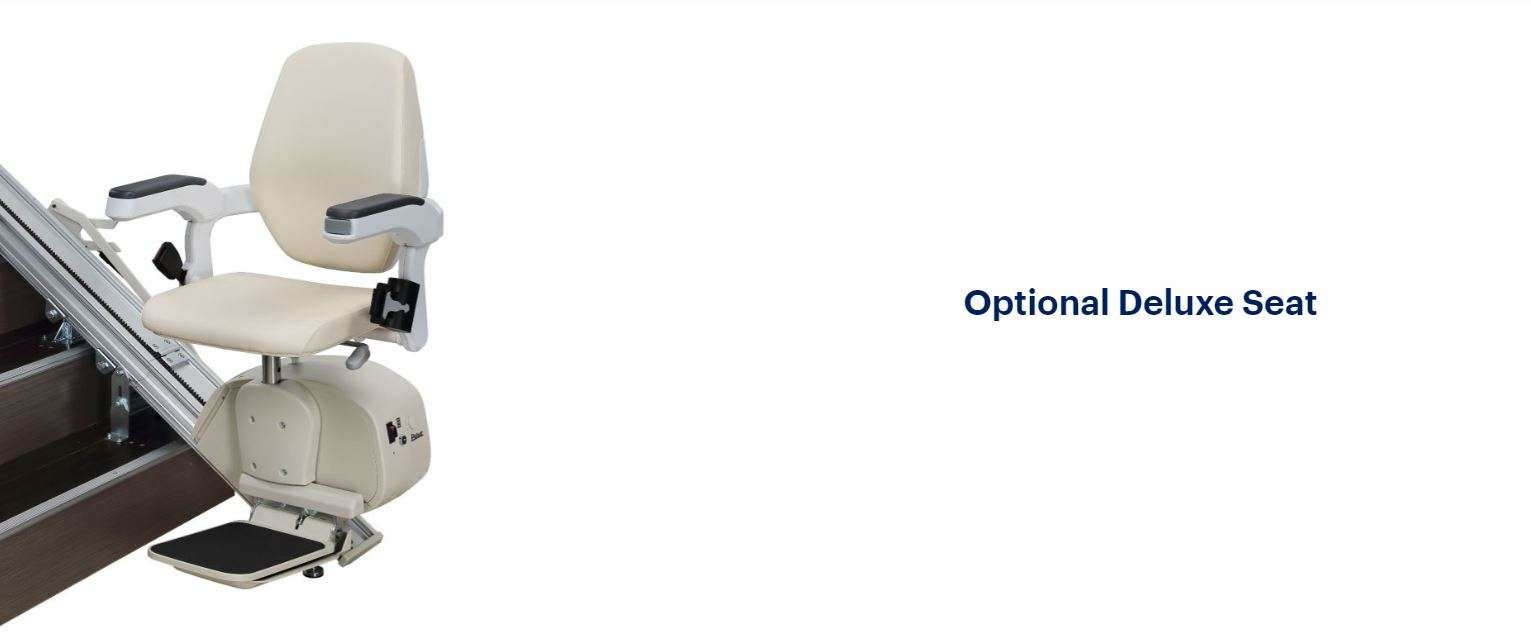

Deluxe Seat Dimension (WxDxH) 58-68 x 51 x 56 cm / 23″-27″x 20″x 22″
Carriage Dimension (LxWxH) 36 x 58 x 96 cm / 14”x 23”x 38”
